FlexRake® FSB

Fine Screen Boutique

openings from 0.020 in to 0.125 in

The advantage of FlexRake® Adaptive Technology™ for specialized fine screen applications

Cost-effective screening for boutique wineries and industrial applications

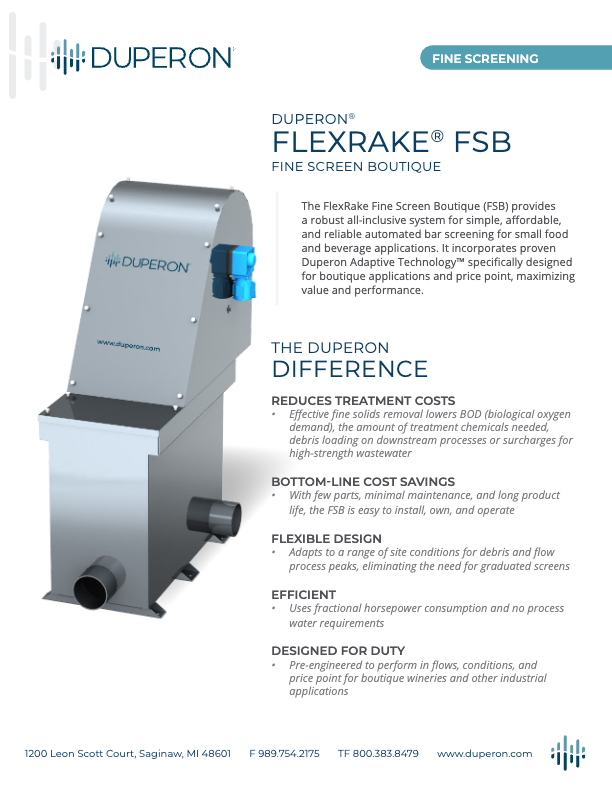

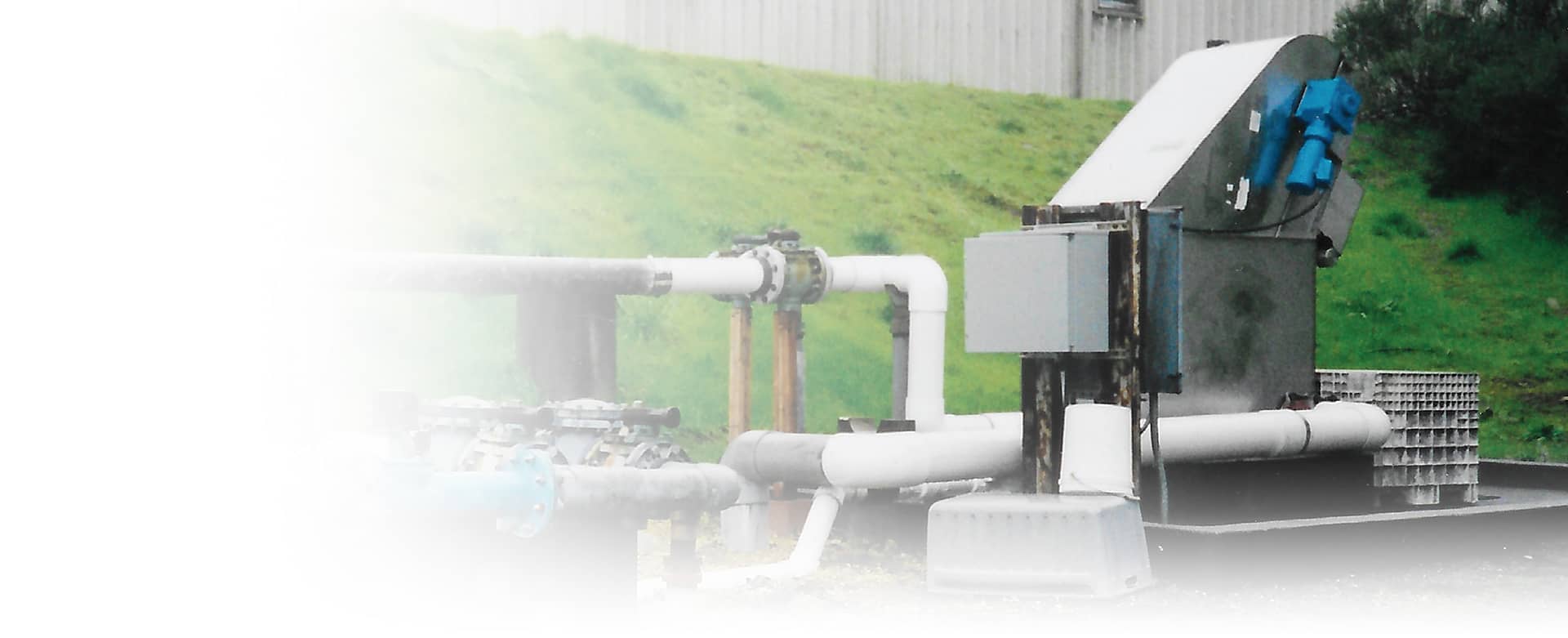

The FlexRake® Fine Screen Boutique (FSB) model is a completely contained, pre-engineered pipe-to-pipe solution for food processing, (boutique) wineries, and other applications. It utilizes a T-shaped Wedgewire screen that can filter from 0.020 to 0.125 inches and is specifically designed to efficiently manage process byproducts and wastewater.

The FlexRake Fine Screen Boutique provides a robust option for simple, affordable, and reliable automated bar screening for small food and beverage applications. It incorporates proven Duperon Adaptive Technology™ specifically designed for this application and price point, maximizing value and performance.

Applications:

  • Boutique wineries
  • Food processing
  • other food and beverage applications

The Duperon®
Difference

The Duperon®
FlexRake® FSB

Reduces treatment costs

Effective fine solids removal lowers BOD (biological oxygen demand), the amount of treatment chemicals needed, debris loading on downstream processes or surcharges for high-strength wastewater

Bottom-line cost savings

With few parts, minimal maintenance, and long product life, the FSB is easy to install, own, and operate

Flexible design

Adapts to a range of known site conditions along with unpredictable debris and flow process peaks, eliminating the need for graduated screens

Efficient

Uses fractional horsepower consumption and no water for CIP (clean-in-place) required

Designed for duty

Pre-engineered to perform in flows, conditions, and price point for boutique wineries and other industry applications

All-inclusive package

Compact system in stainless steel tank with built-in bypass, integral enclosure, and controls

Read how the FlexRake® Fine Screen proved reliable in unpredictable flows and volumes for a Californian winery. Read case study

How can we help

Description

The FlexRake® FSB is a front-clean, front-return, mechanically cleaned bar screen in a pre-engineered packaged 2 ft x 4 ft stainless steel tank. The compact model includes an 8 inch pipe-in, pipe-out connection, built-in overflow bypass, enclosure, and controls. It features the industry-leading FlexLink™ multifunctional link system, which eliminates underwater sprockets, bearings or tracks.

The FlexRake® FSB is constructed of a stainless steel wedgewire screen (0.020 – 0.125 inch openings) and UHMW-PE scrapers designed to your specific application.

General Specs

Typical Applications
  • Wineries
  • Food processing plants
  • Other low flow, fine screening industrial applications
Tank Dimensions:

Width
Height
Depth



2 ft
3 ft – 8 in
4 ft – 5 in

Discharge Height 3 ft – 5 in
Wedgewire Screen Openings 0.020 in, 0.040 in, 0.060 in, 0.100 in, or 0.125 in
Scraper Configuration UHMW scrapers consist of squeegees, beveled edges or brushes depending on application
Material of Construction Available in 304 or 316 Stainless Steel
Flow Capacity Designed to your site and velocity requirements
Cleaning Frequency 1 discharge/minute
Lifting Capacity 300 lbs
Angle of Installation 30 degrees from vertical
Typical Motor 1/8 hp
Standard Controls Overload Protection

Variable Speed

Discrete Start/Stop

Key Features

Pre-engineered solution

Compact system to include built-in overflow bypass, enclosure and controls

Industry-leading FlexLink™ eliminates lower sprockets, submerged bearings and tracks

No water usage required

Long product life with use of SSTL and UHMW-PE durable materials

Low maintenance

Flexible design adapts to planned process peak variations as well as unexpected debris

Fractional horsepower motors used for energy efficiency

Schematic

FlexRake FSB Rendering Dimetric 01

Photo Gallery
