Washer Compactor

Debris Management

The only washer compactor that matches the capacity of the Duperon®  FlexRake®

Powerfully simple: providing consistent results in variable flow and debris conditions

Washer compactors help to automate the solids handling process efficiently and provide a bottom-line impact to meet requirements and reduce landfill volume.

The Duperon® Washer Compactor is ideal for debris in wastewater and industrial applications to clean captured screenings, reduce weight, volume, and odors. Since the Duperon® FlexRake® screens can remove large debris, mats, grease, and other irregular items that find their way into the system, our Washer Compactor provides a robust debris management strategy to complete the process.

The patented dual augers provide positive displacement and a self-regulating compaction zone controls pressure, regardless of volume, to deliver consistent results. The Duperon Washer Compactor assures captured solids are washed, compacted, transported, bagged or otherwise discharged to your site requirements.

Applications:

  • Municipal wastewater
  • Combined sewer overflow
  • Pump stations
  • Lift stations.
  • Industrial wastewater
  • Other non-standard applications where debris is variable or difficult.

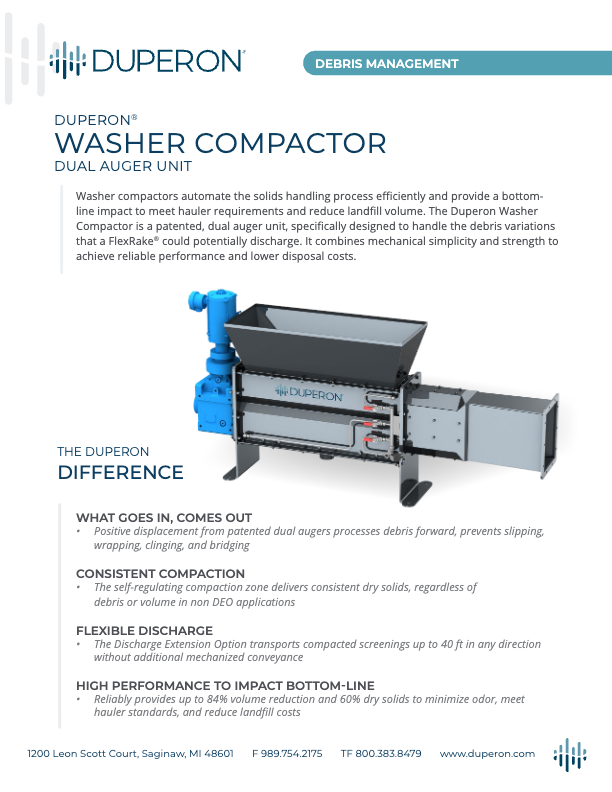

The Duperon®
Difference

The Duperon®
Washer Compactor

Consistent compaction

The self-regulating compaction zone delivers consistent dry solids regardless of debris or volume and does not rely on friction from fixed sized compaction

What goes in, comes out

Positive displacement from patented dual augers processes debris forward, prevents slipping, wrapping, clinging, and bridging

Designed for duty

Designed to process the debris variations that a FlexRake® could occasionally discharge like rocks, grease, clothing, concrete, and metal up to 4 inches

Flexible discharge

The Discharge Extension Option transports compacted screenings up to 40 ft in any direction without additional mechanized conveyance

Low maintenance

A robust dual auger system and bearings assure long product life and minimal maintenance. Strainer is self-cleaning, eliminating brushes

High performance to impact bottom-line

Reliably provides up to 84% volume reduction and 60% dry solids to minimize odor, meet hauler standards, and reduce landfill costs.

Read how the Duperon® Washer Compactor and Discharge Extension Option simplify operations for one county by transporting screenings 30+ feet vertically to grade level Read more

Our solutions are simple

Our Solutions Are Simple

The Duperon® Washer Compactor patent-pending Discharge Extension Option (DEO) can transport debris up to 40 feet in any direction, even vertically, eliminating the need for additional motor-driven conveyance systems.

Most washer compactors rely on the debris chute for compaction. This consists of pushing debris through a set orifice to dewater, using friction from the chute to compact, and applying high horsepower motors to move the plug. With this type of equipment, extended discharge chutes would result in over-compaction and jamming.

The Duperon Washer Compactor works differently. The dual augers combined with the geometry of the chute layout produce backpressure.  This backpressure allows the weight of the plug column (not friction from the chute) to dewater and compact debris. This allows the DEO to easily transport compacted screenings to extended distances, without resistance, additional conveyance augers/mechanisms or large motors. This makes the DEO an excellent option for retrofit applications with challenging constraints.

The DEO provides significant cost savings by:

  • Reducing the length of the bar screen extending multiple levels – the DEO transports the debris to the discharge location instead
  • Eliminating additional conveyance, motors and associated Operations & Maintenance (O&M) required
  • Eliminates manual labor and debris handling of captured screenings

Duperon continues to lead the industry standard with simple engineered solutions for desired outcomes … all with the reliability that you have come to expect from Duperon.

How can we help

Description

The Duperon® Washer Compactor is a powerful system that uses self-cleaning dual augers in a counter rotation to prevent wrapping and to help separate organic and inorganic materials. The dual augers use positive displacement, to continuously move debris forward for cleaning, compaction, and discharge. Flood washing ports clean screenings and return organic back to the channel. A proprietary self-regulating compaction zone provides consistent pressure regardless of volume and debris composition.

Unlike other technologies, the Duperon Washer Compactor typically compresses debris before it enters the discharge chute so it does not rely on fixed orifice compaction (using the friction of screenings in the chute to compact). The internally controlled compaction allows Duperon equipment to push a plug column with little to no resistance to extended locations. The captured solids are delivered in an enclosed, odor and vector-free chute to the desired discharge point.

General Specs

Typical Applications Municipal wastewater

Combined sewer overflow

Pump stations

Lift stations.

Industrial wastewater

*Other non-standard applications where debris is variable or difficult.

Sizing 3 body sizes to choose from to accommodate site and flow capacities.
Water Utilizes filtered effluent or municipal water

Washer consumes 3-10 gallons per minute

Requires 40 PSI-60 PSI

Drain connection 3” NPT

Supply connection 1/2” NPT

Utility 120/240 volt, single phase

240/480 volt, three phase (0.6 kW/2.3 kW/3.8kW)

Drive 1 hp, 3 hp, 5 hp inverter duty motors available
Material of Construction 304 SSTL or 316 SSTL

SSTL spur gears (17 – 4 PH)

Self-lubricating main auger bearings

Bar Screen Flows Flows up to 100 MGD*

*flow values are based on MOP8 values through a ¼” bar screen

Peak Capacity Available from: 30 ft3/hour to 150 ft3/hour
Typical Performance Up to:

30% – 60% dry solids

60% – 70% weight reduction

Significantly decreases odor and fecal content

Standard Controls Packages range from simple start/stop to sophisticated automation.

Motor overload protection provided.

Operation Options Continuous while screen is running with off-delay capability to clear hopper

Key Features

Designed to handle the debris variations that a FlexRake® could potentially discharge

Positive displacement from counter-rotating dual augers ensures what goes in, comes out

Dual augers stress and stretch debris without chopping or grinding

Self-cleaning strainer uses direct contact with the lower auger to keep clean, eliminating maintenance intensive-brushes and relieve strainer clogging.

Housing geometry reduces potential for “Slip Flow” when processing grease, septage and other similar debris

Continuous operation, non-batching system – no buildup of debris, no overflowing or odor issues

Operates in sync with FlexRake bar screen

Passes paint filter test

Accessories

This option is available for the Duperon® Washer Compactor and can transport debris up to 40 feet in any direction, even vertically, eliminating the need for additional motorized conveyance systems.

The Bagger System attaches to the discharge chute for applications where bag dispensing and odor control are required. Included is a 90 meter length of continuous feed bags.

This flexible Drop Sleeve is an economical way to direct and contain downward debris discharge. Also used where waste container hauling may cause damage to metal discharge chutes.

The washer compactor housing and chute can be thermally protected from cold temperatures with the addition of the Heat Blanket with integral heat trace.

Other options include: Operating hopper bypass and hopper level sensor

Schematic

Washer Compactor Renderings Dimetric 01

Photo Gallery

Case Studies

Bay County Department of Water & Sewer Case Study

The Washer Compactor Discharge Extension Option easily transports compacted screenings 35 ft vertically without additional mechanized conveyance. The screenings delivered to grade are cleaner, drier, and lighter weight.
